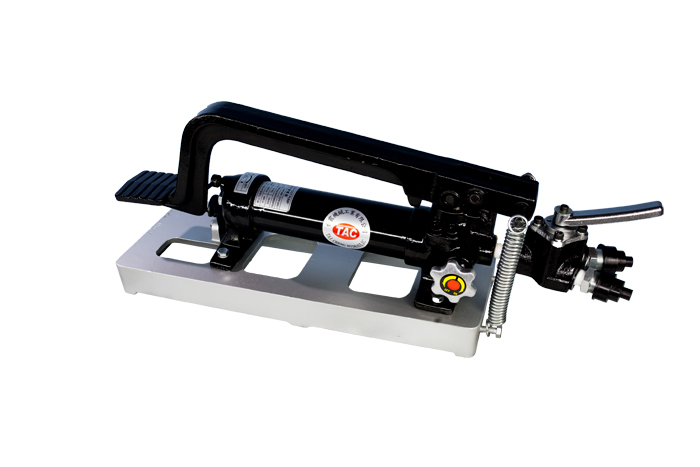

Double-Action Large Oil Capacity Foot Pump

CFP-800-D

Model number： CFP-800-D

Max. Output Pressure(Kg/cm²/psi):700/10000
Output Pressure(kg/cm)²:Low 0-25; Hight 25-700
Output Oil(L/min):Low 13; Hight 2.3
Oil storage(cc):1200
Weight(kg):14.2
Size:LxWxH(mm):650x155x250

Quantity
    Share

    1. High-pressure hand pump, hydraulic tool can be used with single and double-holes, manual type, high and low two-section oil provide quickly, with manually switch four-direction, three-position valve.

    2. In case of large-tonnage hydraulic press or long-stroke (Ex: more than 5O Ton, or above 120 mm stroke), due to the limited springtension oil return slowly, so use double acting hydraulic pump to increase the oil return speed.

    3. The maximum working pressure is 700kgf/cm²(10000psi) both in and out oil, so the oil return can also produce the same tonnage.

    4. Fast, easy to carry, suitable for non-power state workplace.

    5. Pressure can be kept stopped, the pump internal design with high-pressure safety device.

    6. With 2M high pressure hose, 360 degree rotation direction.

    7. Oil storage capacity,suitable for large tonnager long stroke hydraulic tools.

    8. Applicable Oil: R32 special circle oil.
