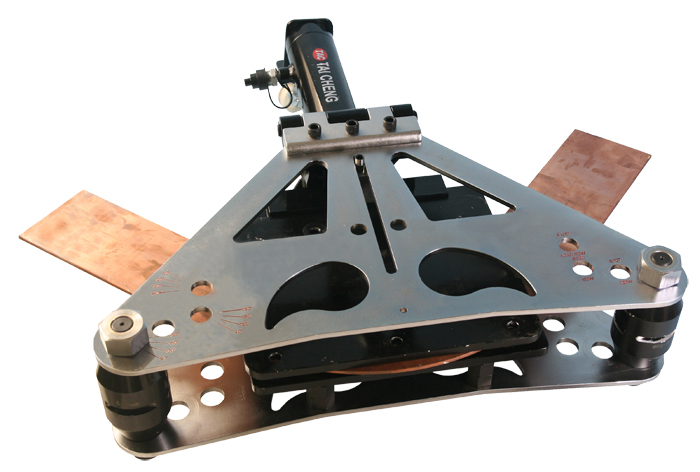

◆Applicable to manufacturing factories, power plant, large on-off boxes, and switchboard auto-c ntr lled industrial wiring work.

◆Provides not only horizontal but vertical bending functions inone tool. Both dies are included for switching.

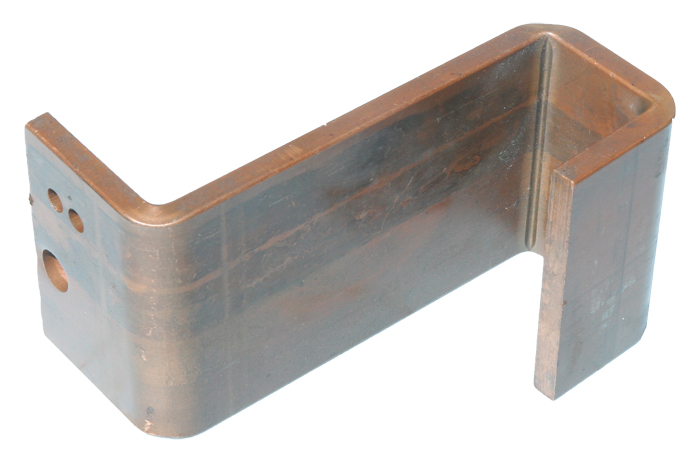

◆While bending horizontal, the design of large-area-bending axis prevents Busba from being torched or twisted. During a vertical bending, both upper and lower boards are pressed simultaneously to keep it flat and smooth,and protect the busbar from beingtwisted or depressed.

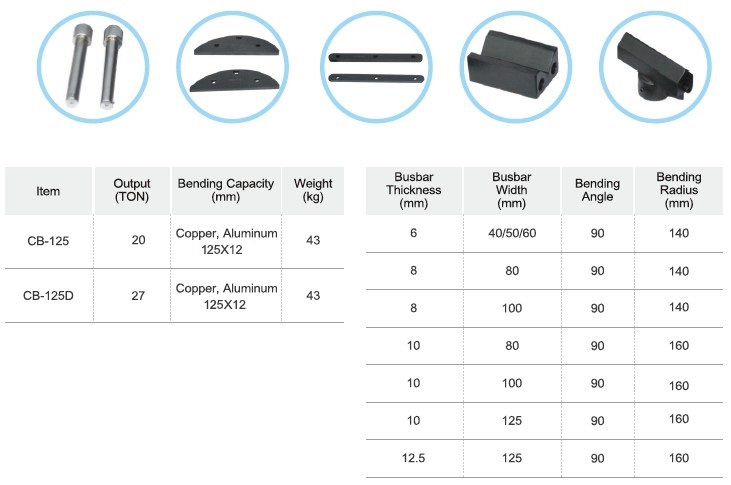

◆Provides angle and scale for controlling the bending angle easily, can complete a bending at once. The max. bending capacity is 125x12tmm.

◆Need to coordinate with hydraulic pump (power pump: CTE-25AS, hand pump: CP-700, or foot pump: CFP-800).

PS: CB-1250 is a double-loop hydraulic cylinder has faster speed while oil returning. It must coordinate with dual-circuit hydraulic pump.
