Light Steel Hydraulic Punching Tools

CH-13 Model - Light Portable Hydraulic Steel Punches

Model number： CH-13

Output(Ton):6.8

Depth(mm):22

Max. Punching Thickness(mm): Iron 3, Stainless Steel1.2

Standard Die(mm):D7, D10, D13

Weight(kg):3.5

Quantity
    Share

    ◆Light, portable. A special designed tool for C channel steels.

    ◆Applicable to C channel steels iron plates, stainless steel plates, and angle steels.

    ◆The max. punching capacity: Iron - D13x3mm; Stainless steel - D13x1.2mm.

    ◆Need to coordinate with hydraulic pump(power pump: CTE-25AS, hand pump: CP-700, or foot pump: CFP-800,CFP-800-1).

    ◆Able to customize dies in any sizes.

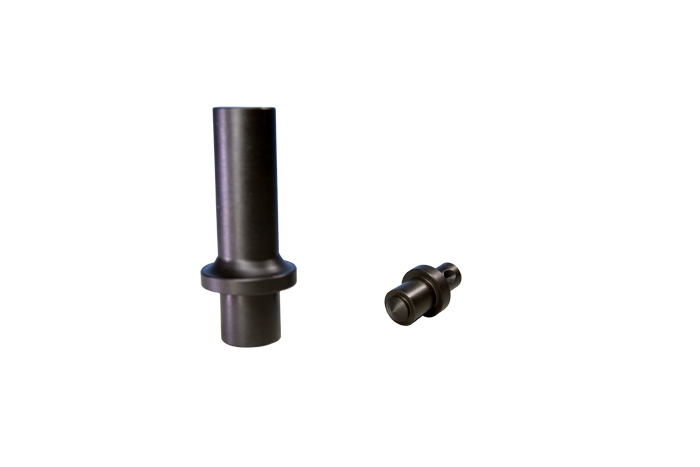

    proimages/A005/CH-13-1.jpg

                    Die
