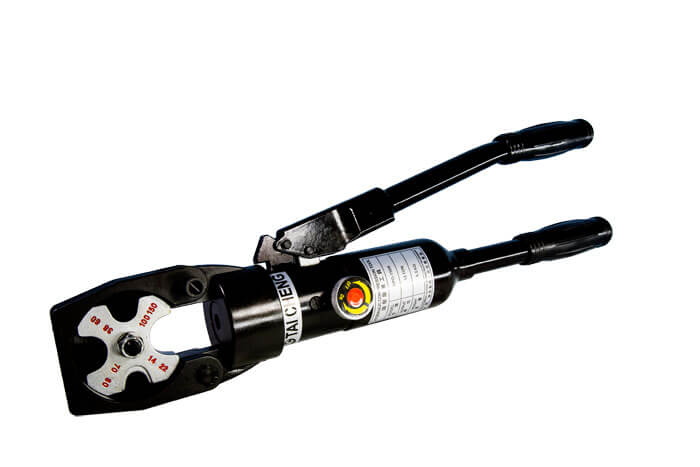

CPO-150S Hydraulic Compression Crimping ToolsCPO-150S Hydraulic Compression Crimping Tools Parts

Model number: CPO-150S

Output:10(Ton)

Body weight:4.6(kg)

Net weight:4.7(kg)

Compressed die sizes(mm²):Male 8-38,60-150/Feamale 14-22,38-60,70-80,100-150

Remark:Point

Quantity

High pressure direct type hydraulic compressed crimping tool, manually operation entering oil by high and low two-stage output, the maximum output pressure is 700kgf/cm2(10000psi).

Easy to operate and carry, suitable for high-altitude operations.

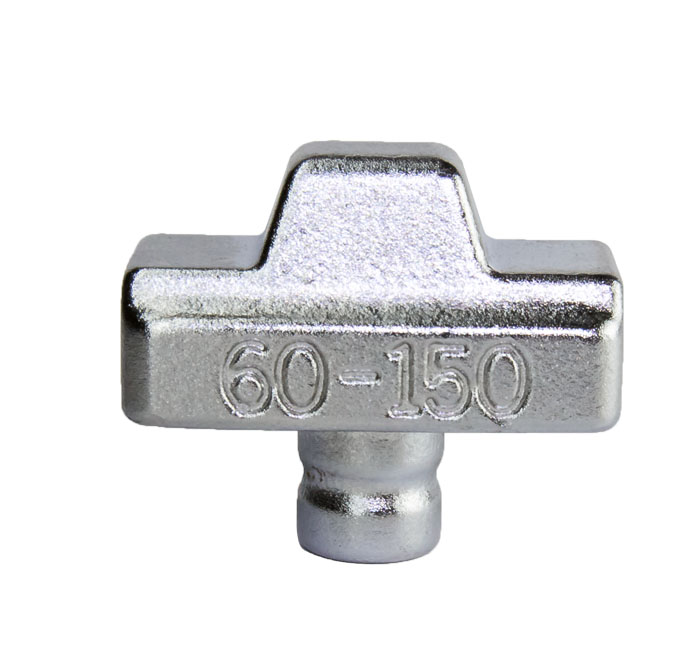

Accessory dies can be replaced, point compression type, compression maximum size up to 185mm2.

180o rotatable head part, can make use of variety of angles.

With the overload-protective device.
